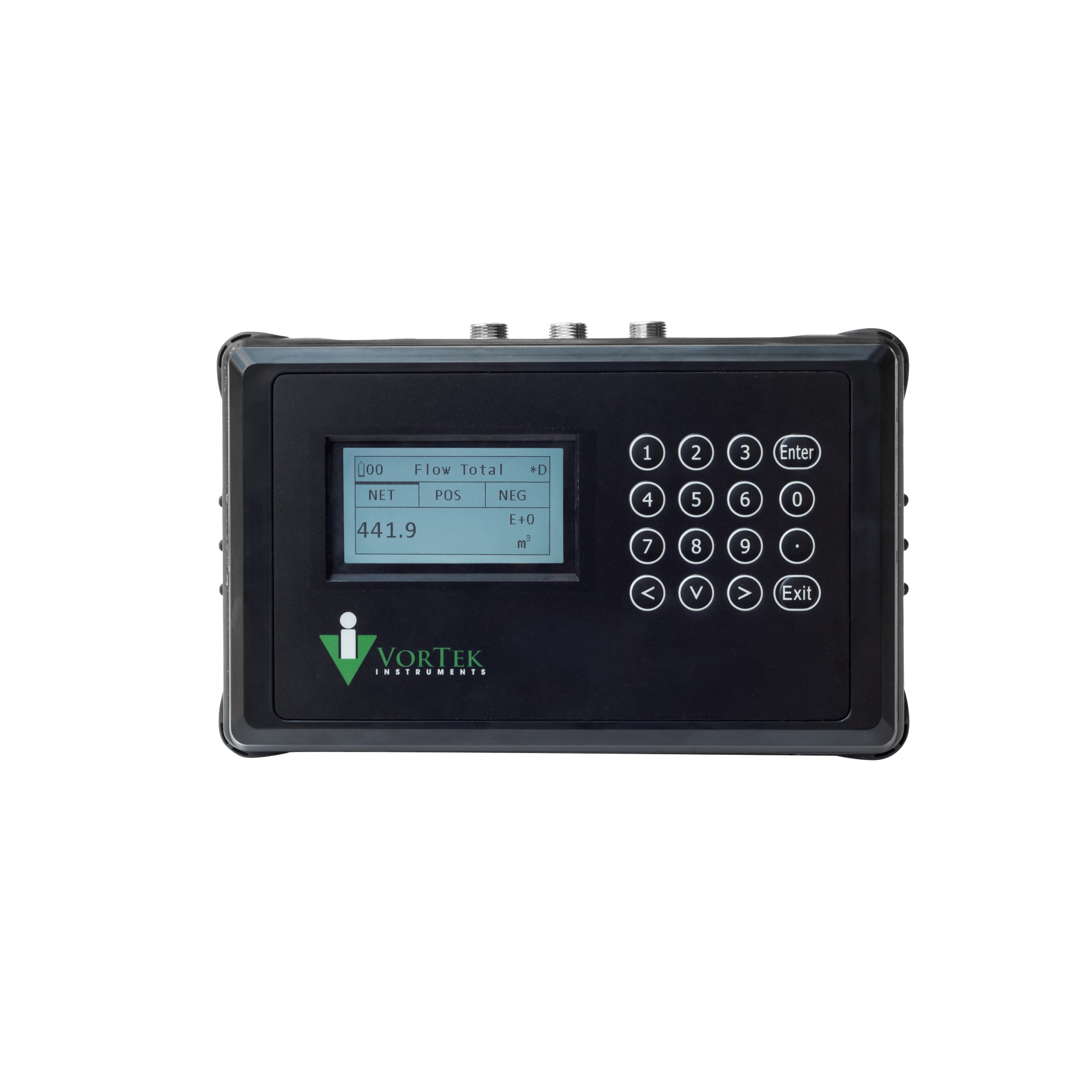

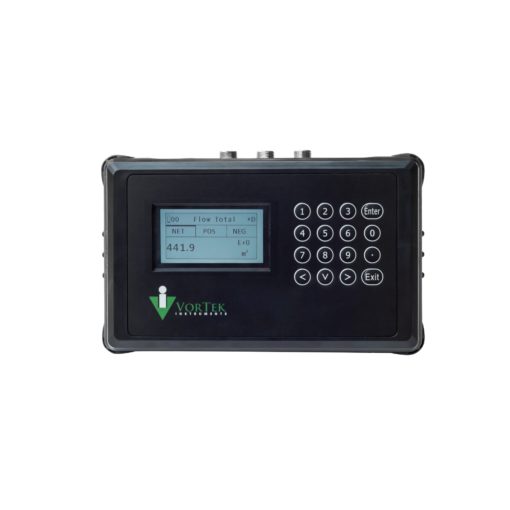

SonoPro Portable Ultrasonic Flow Meter (Model U44)

The SonoPro Model U44 Portable clamp-on flowmeter delivers accurate and reliable flow metering for most liquids over a wide range of velocities by utilizing the ultrasonic transit-time measuring principle. Clamp-on transducers create no wear, zero pressure loss, and do not require process interruptions to install. A BTU energy measurement can be provided with the addition of an external temperature input. The model U44 was designed for clean liquids with little to no air bubbles or particles.

The Model U44 kit includes a carrying case, transmitter, pair of transducers, transducer mounting bracket and straps, acoustic coupling grease, battery charger, output cable, and measuring tape. The Model U44 has a 3000 mAh battery that can last for 16 hours under continuous operation.

Features & Benefits

  • Velocity Range: 0.03 ft/s – 40 ft/s (0.01 m/s – 12 m/s)
  • Accuracy: +/- 1% of Reading
  • Repeatability: 0.2%
  • For pipe sizes 1″ to 48″
  • Output: 4-20mA, RS485
  • Standard 5m cable, optional lengths available up to maximum 30m
clamp-on, flow, ultrasonic, sonopro, vortek, U44, Vor Tek, portable

Description

The SonoPro Model U44 Portable clamp-on flowmeter delivers accurate and reliable flow metering for most liquids over a wide range of velocities by utilizing the ultrasonic transit-time measuring principle. Clamp-on transducers create no wear, zero pressure loss, and do not require process interruptions to install. A BTU energy measurement can be provided with the addition of an external temperature input. The model U44 was designed for clean liquids with little to no air bubbles or particles.

The Model U44 kit includes a carrying case, transmitter, pair of transducers, transducer mounting bracket and straps, acoustic coupling grease, battery charger, output cable, and measuring tape. The Model U44 has a 3000 mAh battery that can last for 16 hours under continuous operation.

Features & Benefits

  • Velocity Range: 0.03 ft/s – 40 ft/s (0.01 m/s – 12 m/s)
  • Accuracy: +/- 1% of Reading
  • Repeatability: 0.2%
  • For pipe sizes 1″ to 48″
  • Output: 4-20mA, RS485
  • Standard 5m cable, optional lengths available up to maximum 30m
