matPIMS remote wall-thickness monitor

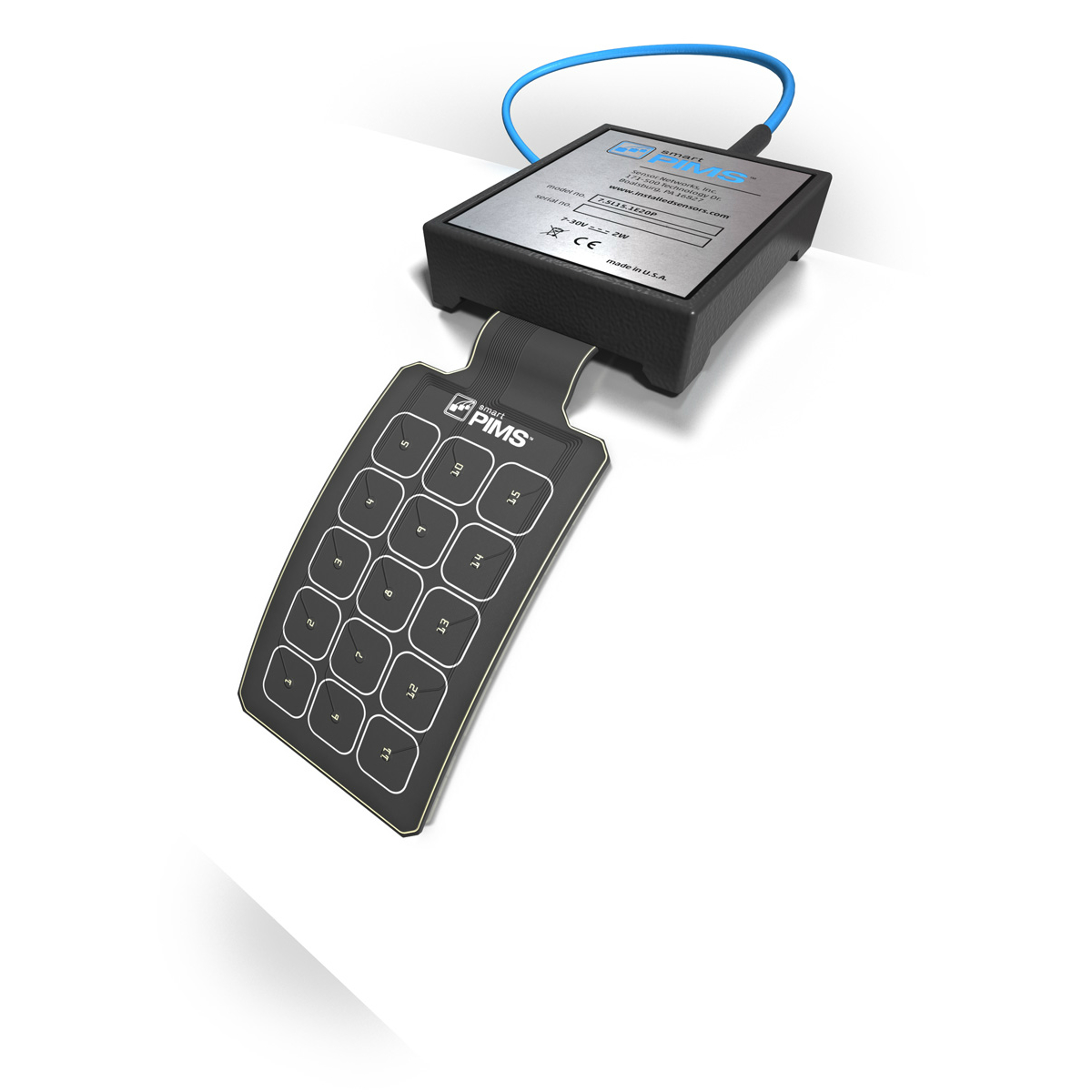

Our new matPIMS™ 3×5 array transducer is a 16-element device that can wrap radially or axially on a pipe as small as 4” diameter. matPIMS plugs directly into the Modbus Tablet with up to 1,000’ (305 m) of cable for signal/data capture.

Features & Benefits

  • Non-intrusive and attaches to the pipe or vessel-wall O.D. thereby avoiding broaching the system’s pressure boundary.
  • Absolute in its ability to directly measure remaining wall thickness. Ultrasound measures the asset – it is not a proxy for thickness or metal loss.
  • Extremely accurate and can resolve metal losses down to 0.0001” (0.0025 mm)
  • Rugged and reliable with very long life. Removes human-error factors.
  • Cost effective & versatile for low, medium & high-temp environments. Can be buried and placed under insulation and in tight areas
  • Capable of monitoring metal degradation mechanisms including corrosion, erosion and crack propagation
Sensor Network, Ultrasonic, Corrosion, Erosion, thickness, monitor

Description

Our new matPIMS™ 3×5 array transducer is a 16-element device that can wrap radially or axially on a pipe as small as 4” diameter. matPIMS plugs directly into the Modbus Tablet with up to 1,000’ (305 m) of cable for signal/data capture.
