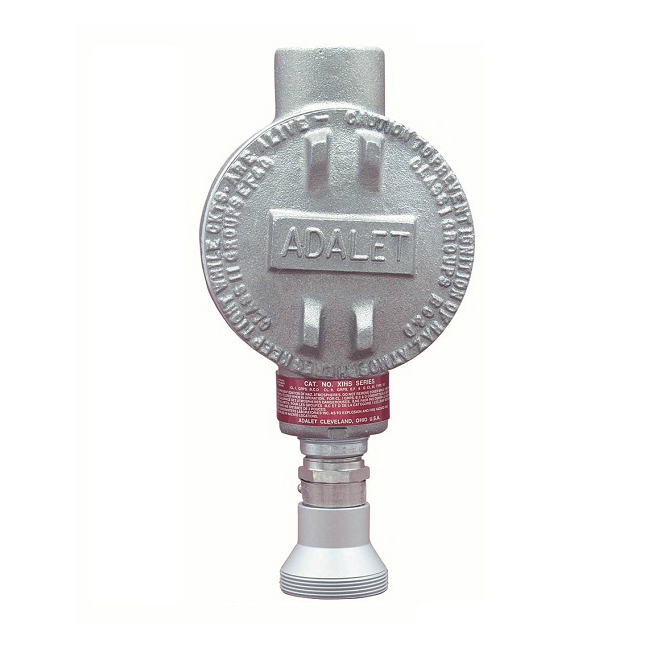

S2 Series Diffusion Sensor/Transmitter

The RKI S2 series gas sensor/transmitters are highly reliable and very cost effective for the detection of common gas hazards. The transmitters for LEL, H2 Specific, Oxygen, H2S, CO2, and Carbon Monoxide are explosion-proof with flame arrestors, and approved for use in hazardous areas (Class l, Groups B, C, D). An optional non-explosion proof version is available for oxygen, H2S, CO, and CO2 in non-hazardous atmospheres. LEL sensors are available using catalytic bead and infrared technologies.

The toxic sensors are electrochemical type plug-in sensors, which provide high specificity, fast response, and long life. The plug-in design allows quick replacement in the field with no tools required. Toxic sensors are designed for use in Class I, Div. 2 hazardous locations.

The S2 transmitters can be used either indoors or outdoors. The flame arrestors for the explosion-proof versions utilize a patented coating which make them water repellent. Splash guards are also available for use in very wet environments. An optional stainless steel junction box is available for corrosive environments.

Application

• Petrochemical Plants
• Refineries
• Gas Plants
• Offshore Drilling Platforms
• Water & wastewater treatment plants
• Pulp & paper mills
• Gas, telephone, & electric utilities
• Parking garages
• Manufacturing facilities
• Steel
• Automotive
• Chemical storage buildings

Features & Benefits

• Available gases include LEL, H2S, CO, PPM H2, and CO2
• Toxic gases include NH3, SO2, HCN, and more
• Infrared sensor for combustibles and CO2
• Hydrogen-Specific now available
• Patented water repellent sensor coating
• 4-20 mA output
• Explosion proof construction
• Optional stainless steel junction box
