Description

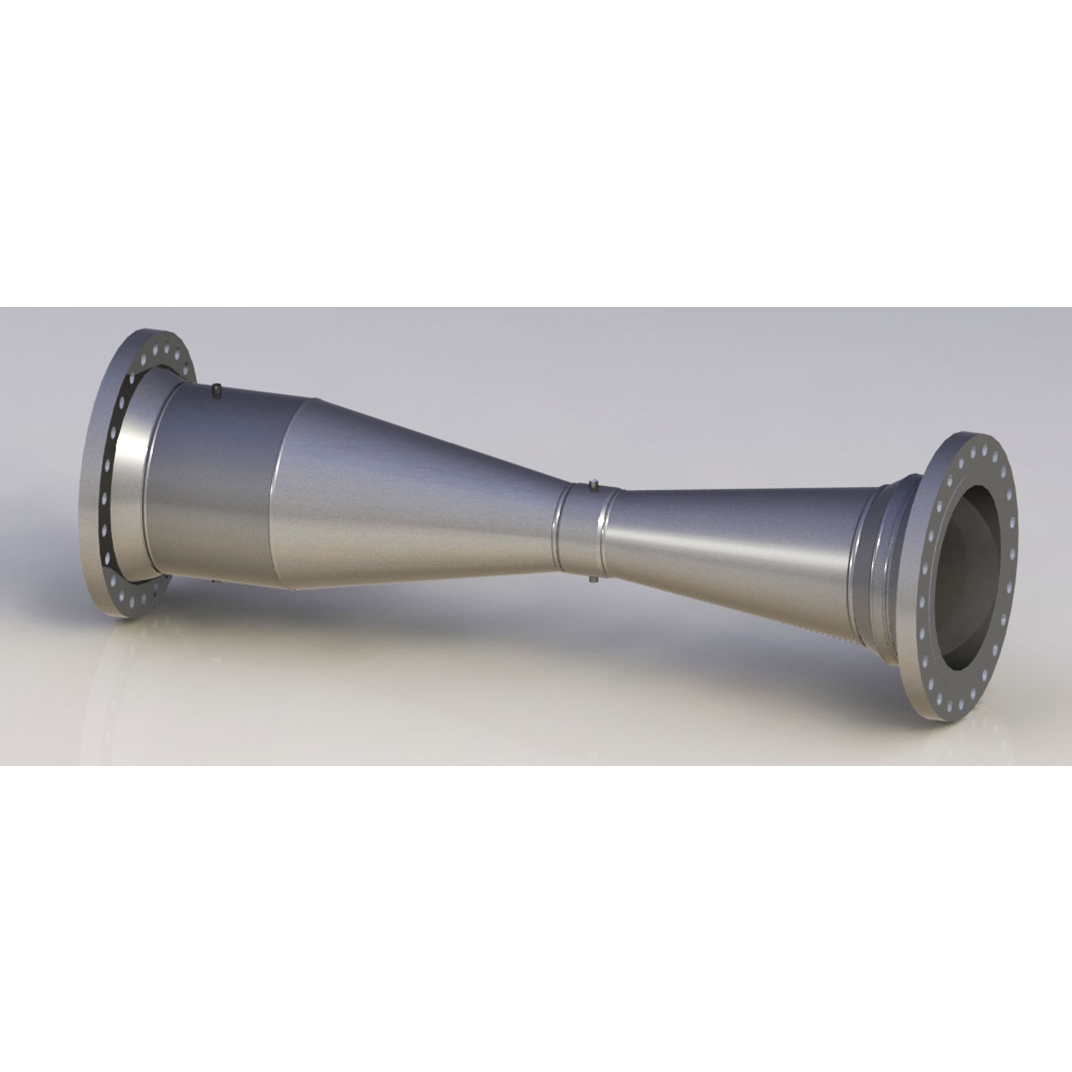

The AFM-V-F and AFM-V-W are designed to measure full pipe, clean gasses or liquids over various temperature and/or pressure ranges. Typical applications include potable water, high pressure steam, combustion air, compressor surge control, oxygen & nitrogen, alcohol, ethylene, chlorine and many other gasses and liquids.
Features & Benefits
- Accuracy with rough cast convergent the percentage of uncertainty of the discharge coefficient is 0.7%
- Accuracy with machined convergent the percentage of uncertainty of the discharge coefficient is 1.0%
- Accuracy with a rough welded sheet iron convergent the percentage of uncertainty of the discharge coefficient is 1.5%.
- Range ability: 10:1 or better depending upon the secondary equipment selected.
- Line Fluid Capability: Gas or liquid full pipe flow.
- Clean with minimal particulate contamination.
- Temperature Range: Cryogenic to Superheated Steam
- Line Pressure Capacity: From full vacuum to the limits of materials.
- Line Size between 1 inch to 144 inches.
